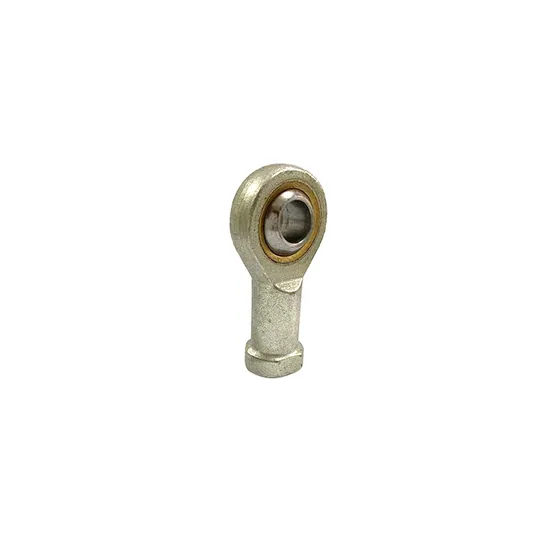

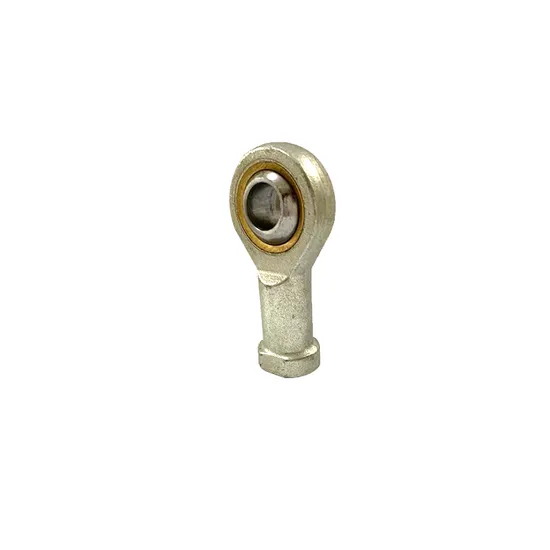

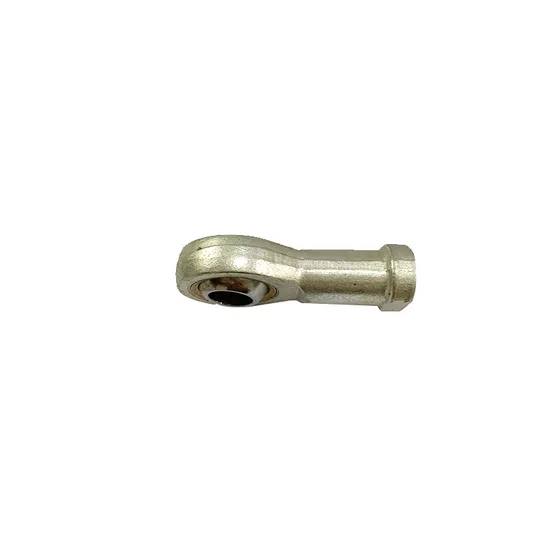

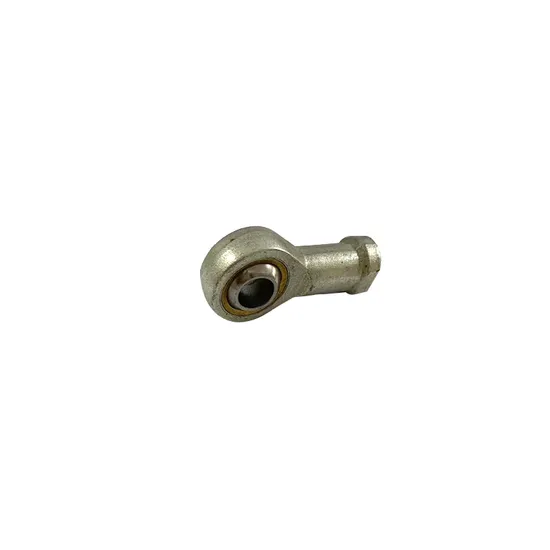

PHS12 Spherical Plain Bearing – Female Threaded, High-Load Rod End
Specifications
| Inner Diameter | 12mm |
| Outer Structure | Whole Outer Ring |
| Thickness | 16mm |
| Thread Size | M12*1.75 |
| Dynamic Load Capacity | 13100N |
| Material | Bearing Steel |
Introduction
PHS12 is a radial spherical plain bearing with self-lubricating function, designed for engineering hydraulic cylinders, construction machinery, and automation equipment. Compact size (12×65×16mm), high load capacity, and reliable performance in harsh environments.
Category:Spherical Plain Bearing
Contact UsProduct Details
Basic Info.
Model NO.
PHS12
Material
Bearing Steel
Load Direction
Radial Spherical Plain Bearing
Add Lubricant
Self-lubricating
Outer Structure
Whole Outer Ring
Rod End
Rod End
Thickness
16mm
Model
Phs12
Application
Engineering Hydraulic Cylinder, Forging Machine, Construction Machinery, Automation Equipment, Automobile Shock Absorber, Water Conservancy Machinery
Model Number
Phs12
Weight
0.107kg
Inner Diameter
12mm
Thread Size
M12*1.75
Dynamic Load Capacity
13100
Static Load Capacity
169000
Transport Package
Box
Specification
12*65*16mm
Trademark
BDL
Origin
Germany Sweden Japan China
HS Code
8482800000
Production Capacity
1000000
