Phs14 Rod End Bearing, 14mm Bore, High-Precision Spherical
Specifications
| Inner Diameter | 14mm |
| Outer Structure | Whole Outer Ring |
| Thickness | 19mm |
| Model | PHS14 |
| Material | Bearing Steel |
| Lubrication | Self-lubricating |
Introduction

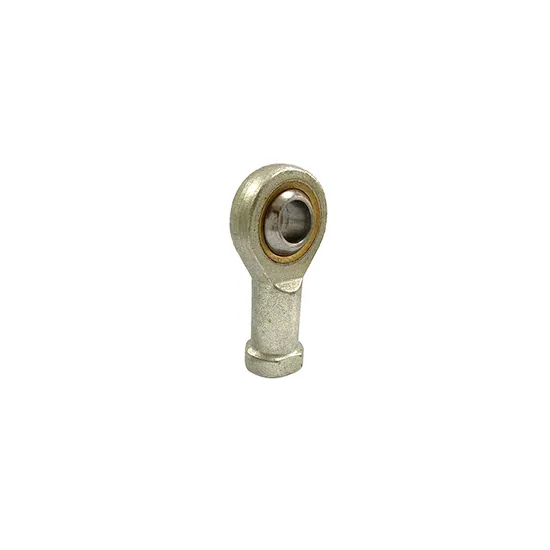

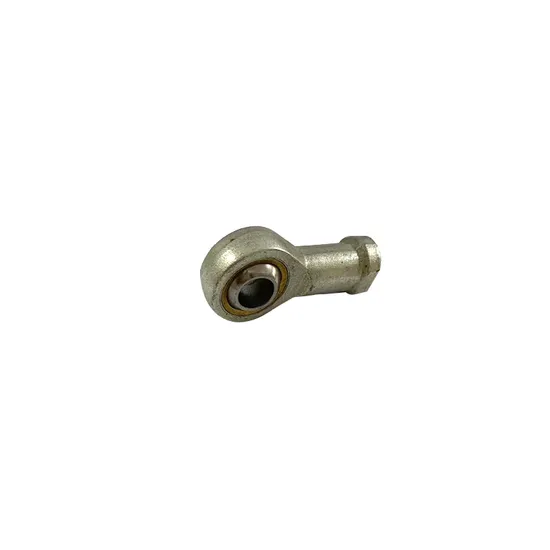

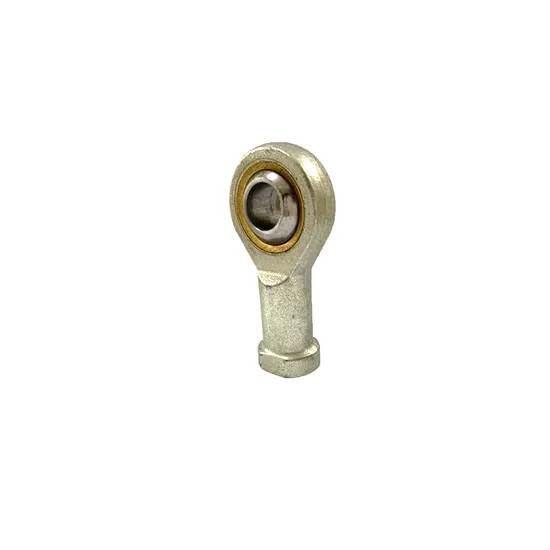

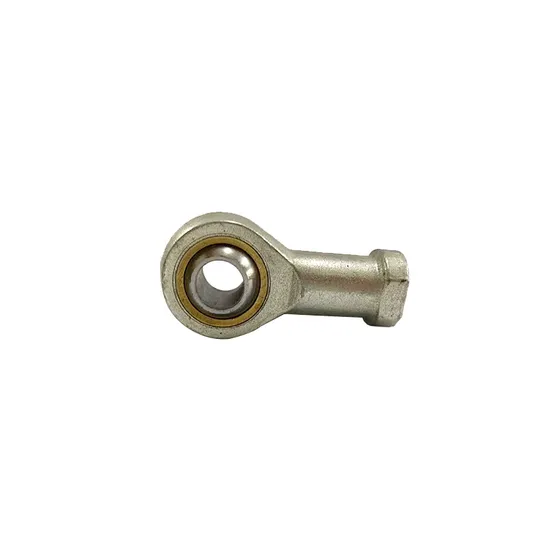

PHS14 is a radial spherical plain bearing made of high-grade bearing steel, featuring self-lubrication, whole outer ring structure, and compact dimensions (14×74×19mm). Ideal for hydraulic cylinders, construction machinery, automation equipment, and automotive shock absorbers. Dynamic load capacity: 16800N; static load capacity: 20900N.
Category:Spherical Plain Bearing
Contact UsProduct Details
Basic Info.
Model NO.
PHS14
Material
Bearing Steel
Load Direction
Radial Spherical Plain Bearing
Add Lubricant
Self-lubricating
Outer Structure
Whole Outer Ring
Rod End
Rod End
Thickness
19mm
Model
Phs14
Application
Engineering Hydraulic Cylinder, Forging Machine, Construction Machinery, Automation Equipment, Automobile Shock Absorber, Water Conservancy Machinery
Model Number
Phs14
Weight
0.16kg
Inner Diameter
14mm
Thread Size
M14*2
Dynamic Load Capacity
16800
Static Load Capacity
20900
Transport Package
Box
Specification
14*74*19mm
Trademark
BDL
Origin
Germany Sweden Japan China
HS Code
8482800000
Production Capacity
1000000
