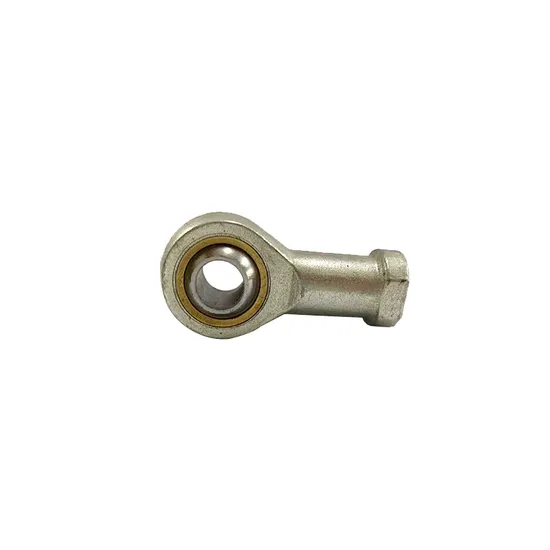

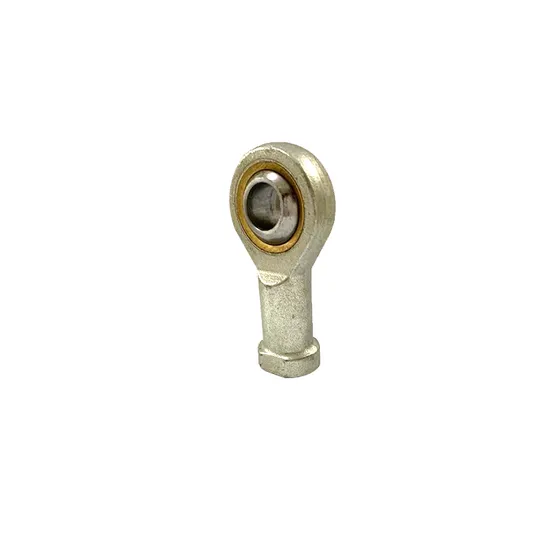

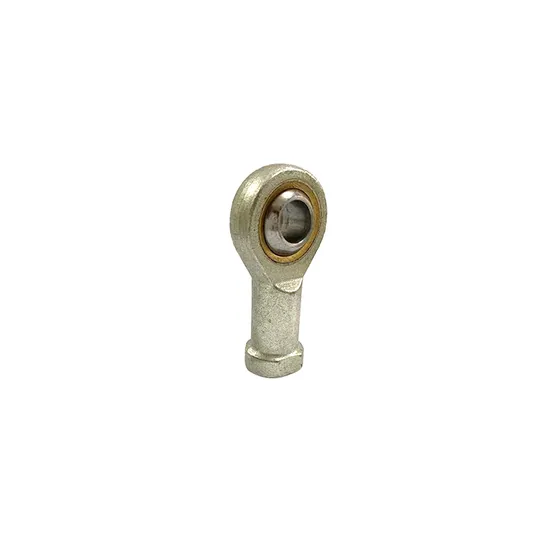

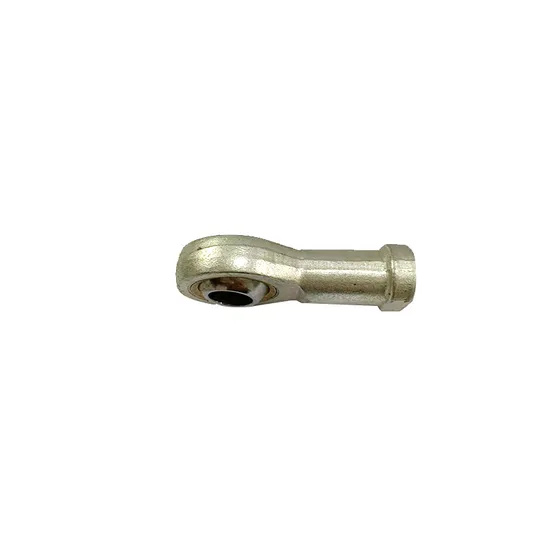

PHS16 Spherical Plain Bearing – Female Threaded, Metric Rod End
Specifications
| Inner Diameter | 16mm |
|---|---|
| Outer Structure | Whole Outer Ring |
| Thickness | 21mm |
| Model | PHS16 |
| Material | Bearing Steel |
| Lubrication | Self-lubricating |
Introduction
PHS16 is a radial spherical plain bearing made of high-grade bearing steel, featuring self-lubricating properties and a whole outer ring design. With inner diameter 16mm, thickness 21mm, and compact specification 16×83×21mm, it’s widely used in hydraulic cylinders, construction machinery, automotive shock absorbers, and automation equipment.
Category:Spherical Plain Bearing
Contact UsProduct Details
Basic Info.
Model NO.
PHS16
Material
Bearing Steel
Load Direction
Radial Spherical Plain Bearing
Add Lubricant
Self-lubricating
Outer Structure
Whole Outer Ring
Rod End
Rod End
Thickness
21mm
Model
Phs16
Application
Engineering Hydraulic Cylinder, Forging Machine, Construction Machinery, Automation Equipment, Automobile Shock Absorber, Water Conservancy Machinery
Model Number
Phs16
Weight
0.21kg
Inner Diameter
16mm
Thread Size
M16*2
Dynamic Load Capacity
21000
Static Load Capacity
25400
Transport Package
Box
Specification
16*83*21mm
Trademark
BDL
Origin
Germany Sweden Japan China
HS Code
8482800000
Production Capacity
1000000
