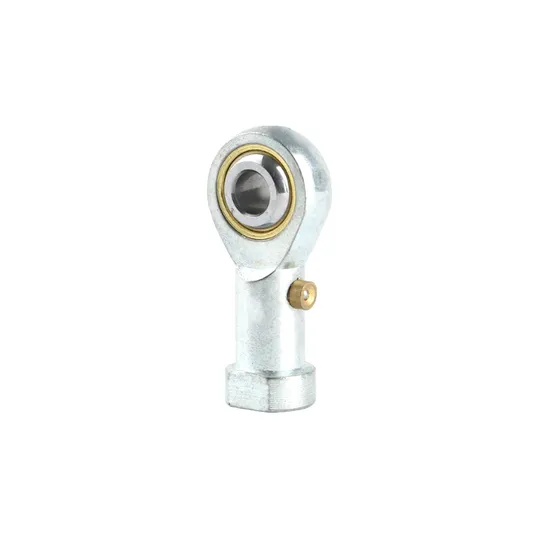

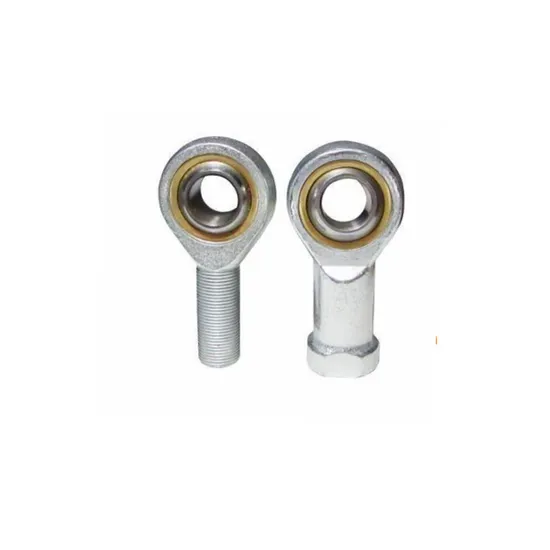

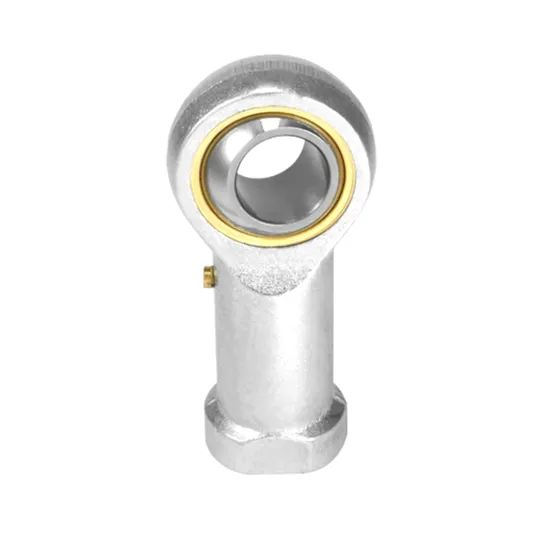

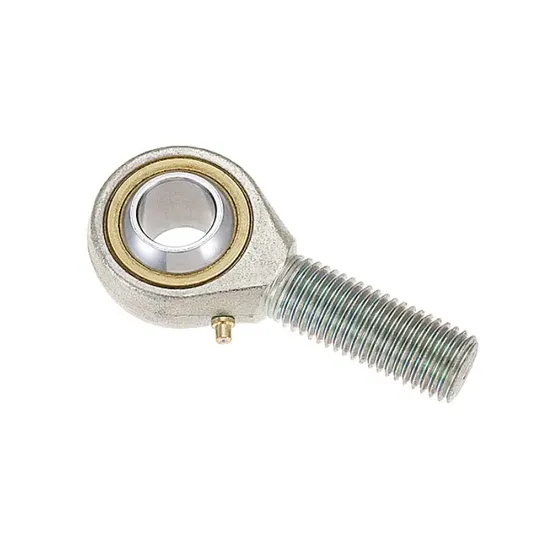

PHS6 Spherical Plain Bearings – High-Load Threaded Rod Ends
Specifications
| Inner Diameter | 6mm |
|---|---|
| Outer Diameter | 39mm |
| Thickness | 9mm |
Introduction
PHS6 is a self-lubricating radial spherical plain bearing made of bearing steel. It features a whole outer ring, M6×1 thread, and high load capacity (dynamic: 4200N, static: 6910N). Ideal for hydraulic cylinders, construction machinery, and automotive shock absorbers. Weight: 0.025kg. Origin: Germany/Sweden/Japan/China.
Category:Spherical Plain Bearing
Contact UsProduct Details
Basic Info.
Model NO.
PHS6
Material
Bearing Steel
Load Direction
Radial Spherical Plain Bearing
Add Lubricant
Self-lubricating
Outer Structure
Whole Outer Ring
Rod End
Rod End
Thickness
9mm
Model
Phs6
Application
Engineering Hydraulic Cylinder, Forging Machine, Construction Machinery, Automation Equipment, Automobile Shock Absorber, Water Conservancy Machinery
Model Number
Phs6
Weight
0.025kg
Inner Diameter
6mm
Thread Size
M6*1
Dynamic Load Capacity
4200
Static Load Capacity
6910
Transport Package
Box
Specification
6*39*9mm
Trademark
BDL
Origin
Germany Sweden Japan China
HS Code
8482800000
Production Capacity
1000000
